Product Introduction

Ecological environment monitoring station is a comprehensive monitoring platform that integrates multiple sensors, data acquisition and transmission systems, and intelligent analysis software. They can monitor in real-time the concentrations of various pollutants and ecological indicators in environmental elements such as atmosphere, water bodies, and soil, such as PM2.5, SO2, NOx, dissolved oxygen, heavy metal ions, negative oxygen ions, etc.

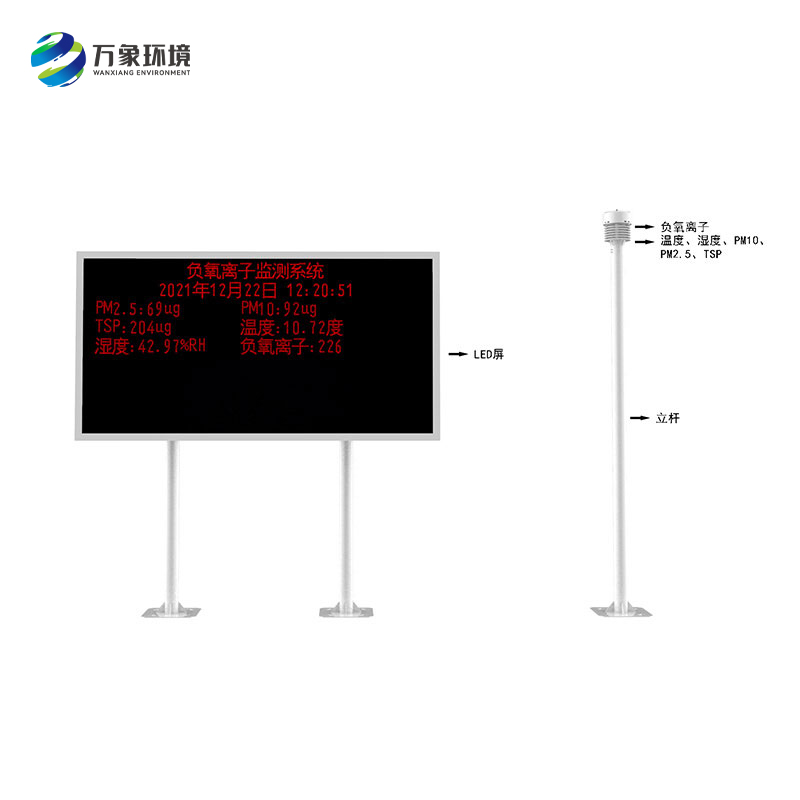

The online monitoring system for negative oxygen ions can monitor the concentration of negative oxygen ions in the air around the clock. At the same time, it can expand the monitoring items according to the user's needs, such as: air temperature, air humidity, PM2.5, PM10, atmospheric pressure, oxygen content, noise, wind speed, wind direction and other meteorological elements; The modular structure design allows all sensors to be replaced separately. It is equipped with a professional installation bracket. On site, data can be directly read from the LED screen. You can also view data in real time on the cloud platform/WEB WeChat official account. It is convenient for later operation and maintenance.

2. Scope of Application

Tourist attractions, ecological manor, wetland park, waterfall park, forest park, nature reserve, sales office, school

Three, Technical Parameters

1. Wind speed: Measurement principle ultrasonic, 0～60m/s (±0.1m/s) resolution 0.01m/s;

2、Wind direction: Measurement principle ultrasonic, 0～360° (±2°) resolution 1°;

3、Air temperature: Measurement principle: Diode junction voltage method, -40-60℃ (±0.3℃) resolution 0.01℃;

4、Air humidity: Measurement principle capacitive, 0-100% RH (±0.3% RH), resolution 0.1% RH;

5、Atmospheric pressure: Measurement principle piezoresistive, 300-1100hpa (±0.25%), resolution 0.1hpa;

6、PM2.5: Measurement principle light scattering, 0-1000ug/m3 (±10%) resolution 1ug/m3

7、PM10: Measurement principle light scattering, 0-1000ug/m3 (±10%) resolution 1ug/m3

8、Noise: Measurement principle capacitive, 30-120dB (±1.5dB) resolution 0.1db

9、Negative oxygen ions: Measurement principle cylindrical electrode suction type, 0-100,000/cm3 (±10%) resolution 1/cm3

10、Oxygen content: Measurement principle electrochemical, 0~25%Vol (±3%FS) Resolution 0.1%

11、Data storage: Original monitoring data can be stored for one year;

12、Data transmission: GPRS/4G/Fiber

13、Power consumption: 800w

14、Power supply mode: 220VAC, Solar (optional)

15、Working environment: temperature -40℃-60℃, humidity 0%-100%

16、Screen: 2m*1 meter, assembled by 36 P10 single red single modules, module size 32cm*16cm

17、Upright: Carbon steel double uprights, each upright is made of 2 pieces of 1.5m upright flanges butt welded together, can withstand 15-level strong typhoon

18、The production enterprise has ISO quality management system, environmental management system and occupational health management system certification.

19、The manufacturer has a certificate of registration for computer software.

20、The production enterprise is a credit enterprise of grade 3A

IV. Product Features

1. High integration and flexible scheme: the system can integrate negative oxygen ions, air temperature, air humidity, PM2.5, PM10, atmospheric pressure, oxygen content, noise, wind speed, and wind direction.

2、System stability: We have cooperated with thousands of parks and scenic spots, the background runs stably, maintenance-free, and the fault rate is low.

3、Multiple transmission: The transmission mode can be customized according to the on-site network conditions, 2G/4G/fiber.

4、Support for expansion: Support for sensor expansion, 485 interface, modbus protocol sensors can be used directly

5、Display scheme diversity: LED screen data display scheme can be selected according to on-site needs, including point-to-point, point-to-multiple, and multiple-to-point.

5. Introduction to the Cloud Platform

1. CS architecture software platform, supports mobile phones, PC browsers to directly observe, no need for additional software installation.

2、Support multiple accounts, multiple devices login

3、Support real-time data display and historical data display dashboard

4、Cloud server, cloud data storage, stable and reliable, easy to expand, load balancing.

5、Support SMS alarm and threshold setting

6、Support map display, view device information.

7、Support data curve analysis

8、Support data export in table format

9、Support data forwarding, HJ-212 protocol, TCP forwarding, http protocol, etc.

10、Support for data post-processing functions

11、Support for external JavaScript scripts;
