contacts ：Manager MAO
Telephone ：15666889815
QQ:1950883583
Company Address：The second floor of the first accelerator of the Optoelectronic Industry Park, No. 155 Incubation Second Lane, High tech Zone, Weifang City, Shandong Province
update time ：2025-07-16
Model：WX-LSZ03
Product Price: Electronic Negotiation
Product brand: Wanxiang Environment
1. Product Introduction
The LSZ03 vertical water quality online monitoring station takes water quality sensors (water temperature, conductivity, PH) as the core, monitors and analyzes various water quality parameters, and transmits the collected data to the platform end for real-time data viewing and remote device management. At the same time, it effectively provides over限 alarms and intelligent processing for the trend of water quality changes, and can also express the comprehensive index of water quality based on the correlation combination of real-time water quality parameters, providing a large number of objective and detailed effective data for customers, which has practical significance for solving water pollution problems.
At present, the LSZ03 type water quality monitoring station is widely used in aquaculture, sewage treatment, reservoirs, rivers and other places.
2. Product features
1.Low power collector: static power consumption less than 1mA
2. Standard GPRS connectivity, supports extended Bluetooth, wired transmission
3. Support modbus485 sensor expansion
4. Solar charging management MPPT automatic power point tracking
5.1.5m carbon steel support
6. SMS alarm, send a text message to a specified mobile phone after exceeding the limit
7. Stainless steel material protective box, corrosion resistance, anti-oxidation, waterproof grade IP66
8. No need for wiring, construction of station houses, drug allocation, and personnel post-maintenance, making it more convenient to use and install than national standard water quality monitoring stations, and the observation data is more intuitive.
9. The system can integrate integrated meteorological environment monitoring data.
Three, System Composition

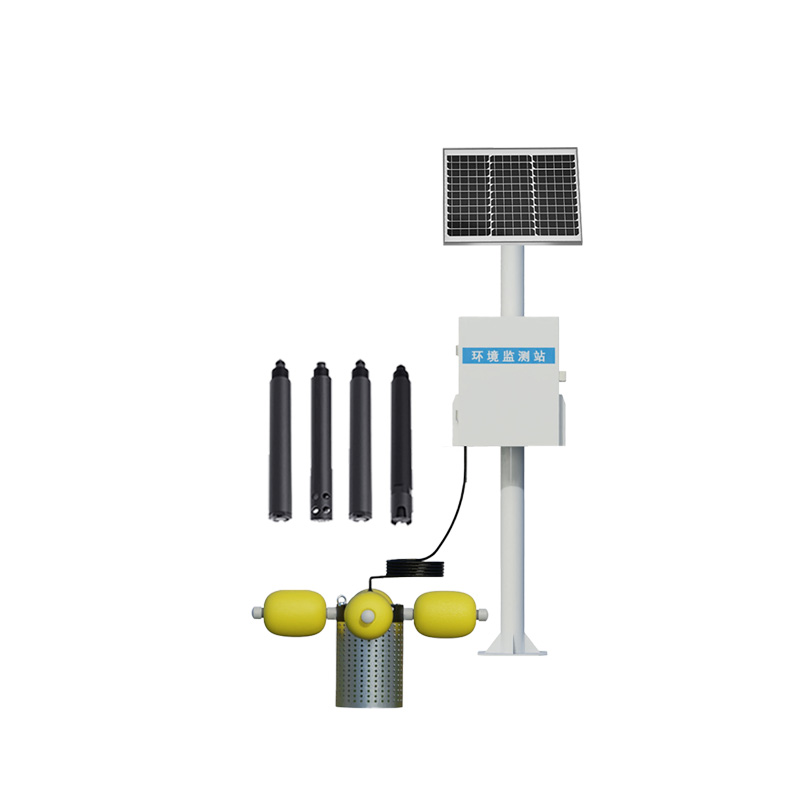

The vertical water quality online monitoring system is mainly composed of a base bracket (including a vertical pole, a ground cage, an ABS anti-corrosion and corrosion-resistant protective box), a power supply system, a monitoring host, a water quality sensor, and a cloud platform.
Four, Technical Parameters
| No. | Name | Measurement range | Measurement principle | Measurement accuracy | Is it standard equipment | Note |
| 1 | Temperature | 0~50℃ | High-precision digital sensor | ±0.3℃ | ? | |
| 2 | pH | 0~14 (ph) | Electrochemistry (salt bridge) | ± 0.1PH | ? | |
| 3 | Open Research Platform | -1500mv~1500mv | Electrochemistry (salt bridge) | ± 6mv | ||
| 4 | Electrical conductivity | 0~5000uS/cm | Contact electrode method | ± 1.5% | ? | |
| 5 | Turbidity | 0~40NTU (Low turbidity) | Scattering light method | ± 1% | Low turbidity can be customized | |
| 0~1000NTU (moderately turbid) | Scattering light method | ± 1% | Customizable medium turbidity | |||
| 0~3000NTU (High Turbidity) | Scattering light method | ± 1% | Default send | |||
| 6 | Dissolved oxygen | 0~20mg/L | Fluorescence lifetime method | ± 2% | ||
| 7 | Ammonia nitrogen | 0~100mg/l | Ion selective electrode method | ±1mg | ||
| 8 | cod | 0~500mg/ L | UV254 absorption method | ±5% | Default discharge, COD turbidity integrated; with an automatic cleaner to prevent biological attachment, avoid window pollution, and ensure long-term monitoring stability; can set the automatic cleaning time and the number of cleanings, power consumption 0.7W | |
| Turbidity | 0~400NTU | Scattering light method | ± 1% | |||
| 9 | Suspended matter | 0~2000mg/L | Scattering light method | ±5% (depending on the homogeneity of the sludge) | ||
| 10 | Chlorophyll | 0~400ug/L | Fluorescence method | R2>0.999 | With an automatic cleaner to prevent bio附著, avoid window pollution, to ensure long-term monitoring stability; can be set to automatic cleaning time and number of cleanings, power consumption 0.7W |
5. Introduction to the Cloud Platform
1. CS architecture software platform, supports mobile phones, PC browsers to observe directly, no need for additional software installation.
2. Support multiple accounts, multiple devices login
3. Support for real-time data display and historical data display dashboards
4. Cloud servers, cloud data storage, stable and reliable, easy to expand, load balancing.
5. Support SMS alarm and threshold setting
6. Support for map display, view device information.
7. Support for data curve analysis
8. Support for data export in spreadsheet format
9. Support data forwarding, HJ-212 protocol, TCP forwarding, http protocol, etc.
10. Support for data post-processing functions
11. Support for external JavaScript scripts
